XSD-260B electric fence energiser
£95.43 inc. VAT (£79.53 ex. VAT)
- 2 J stored and 1.5 J output, with a 10 kV peak.

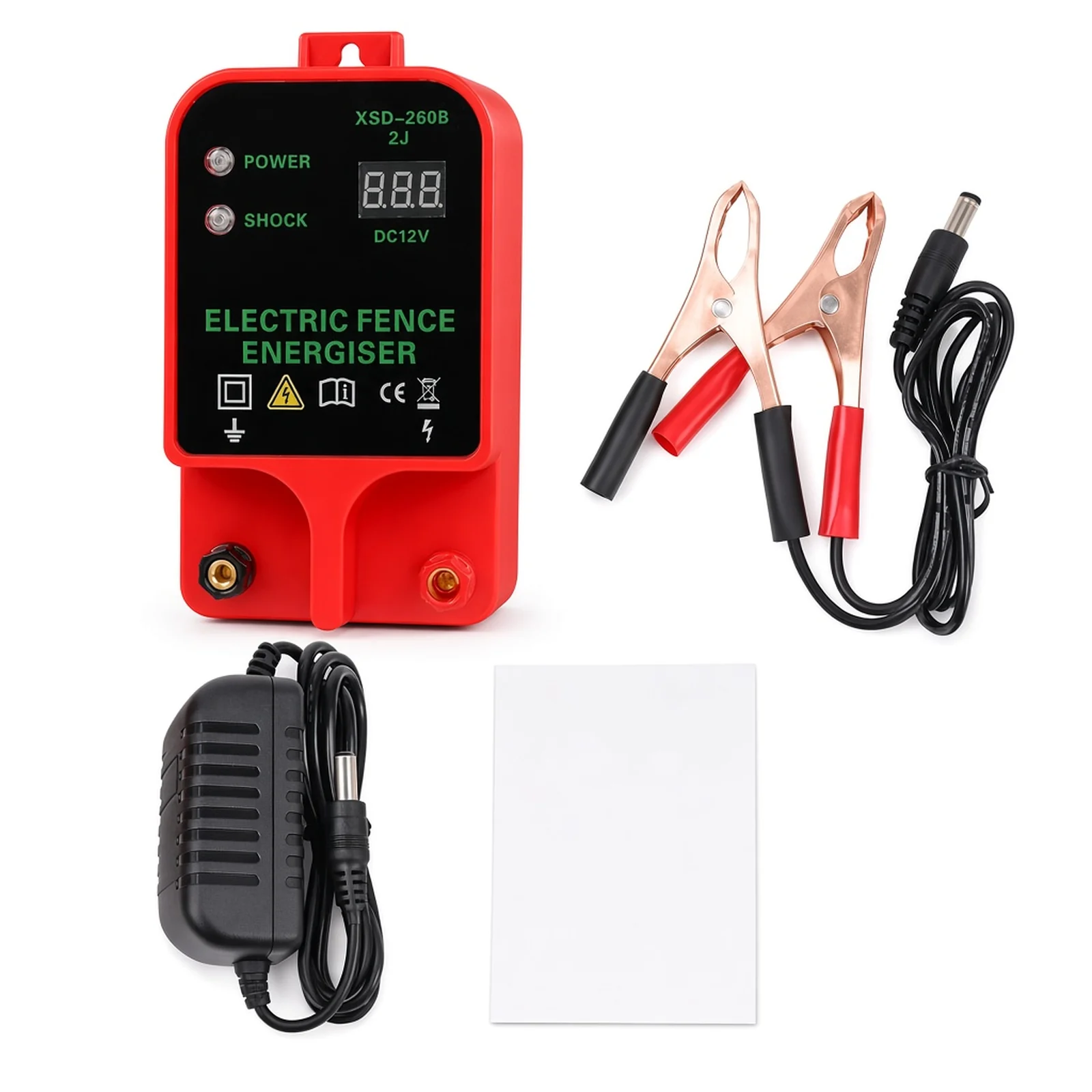

- The XSD-260B energiser, a mains adapter, a 12 V lead with clips, and an instruction sheet.
- Peak output is 10 kV. Pulses are about 1.3 seconds apart.
- Each pulse is shorter than 0.1 seconds. Working current is 100–700 mA.
Why Choose ElectricFe

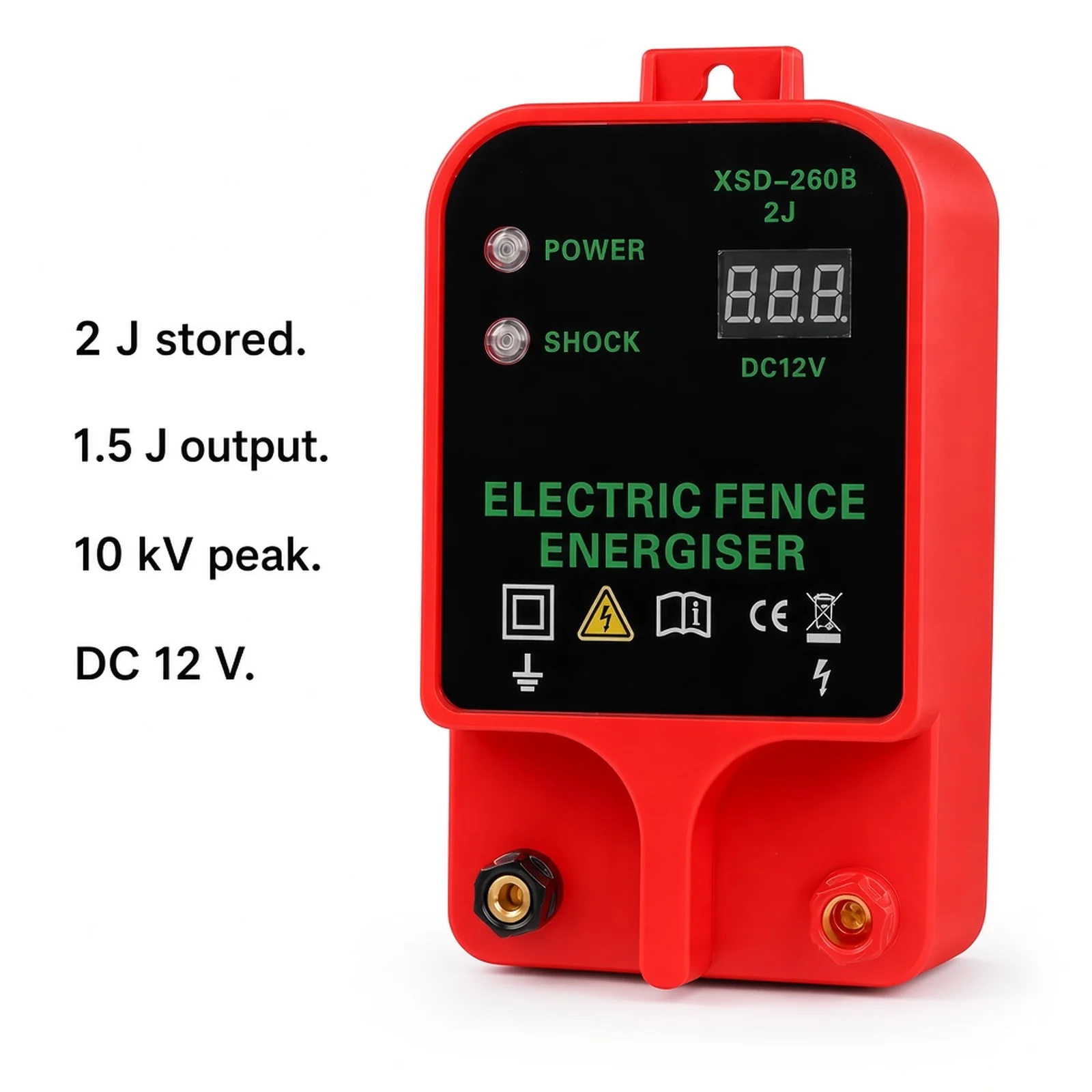

The XSD-260B is a DC 12 V pasture fence energiser for cattle. Stored energy is 2 J, output energy is 1.5 J, and the peak is 10 kV. Use the mains adapter in the box, or a 12 V battery with the clip lead.
Fence length and pulse

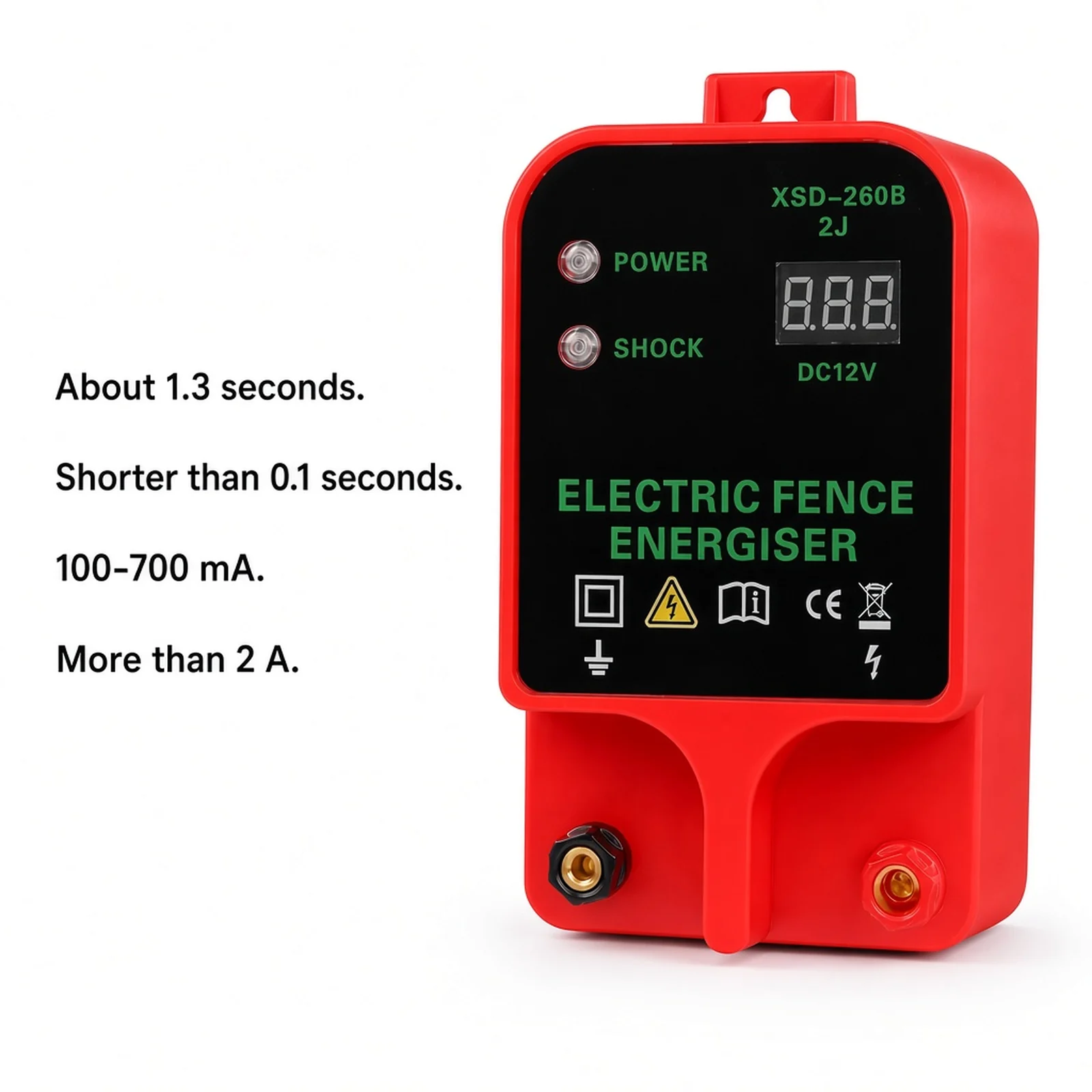

Best fence length is within 10 km. The longest run on this energiser is 20 km. Pulses arrive about every 1.3 seconds and each pulse is shorter than 0.1 seconds. Working current is 100–700 mA. The supply should deliver more than 2 A.
Housing and the box

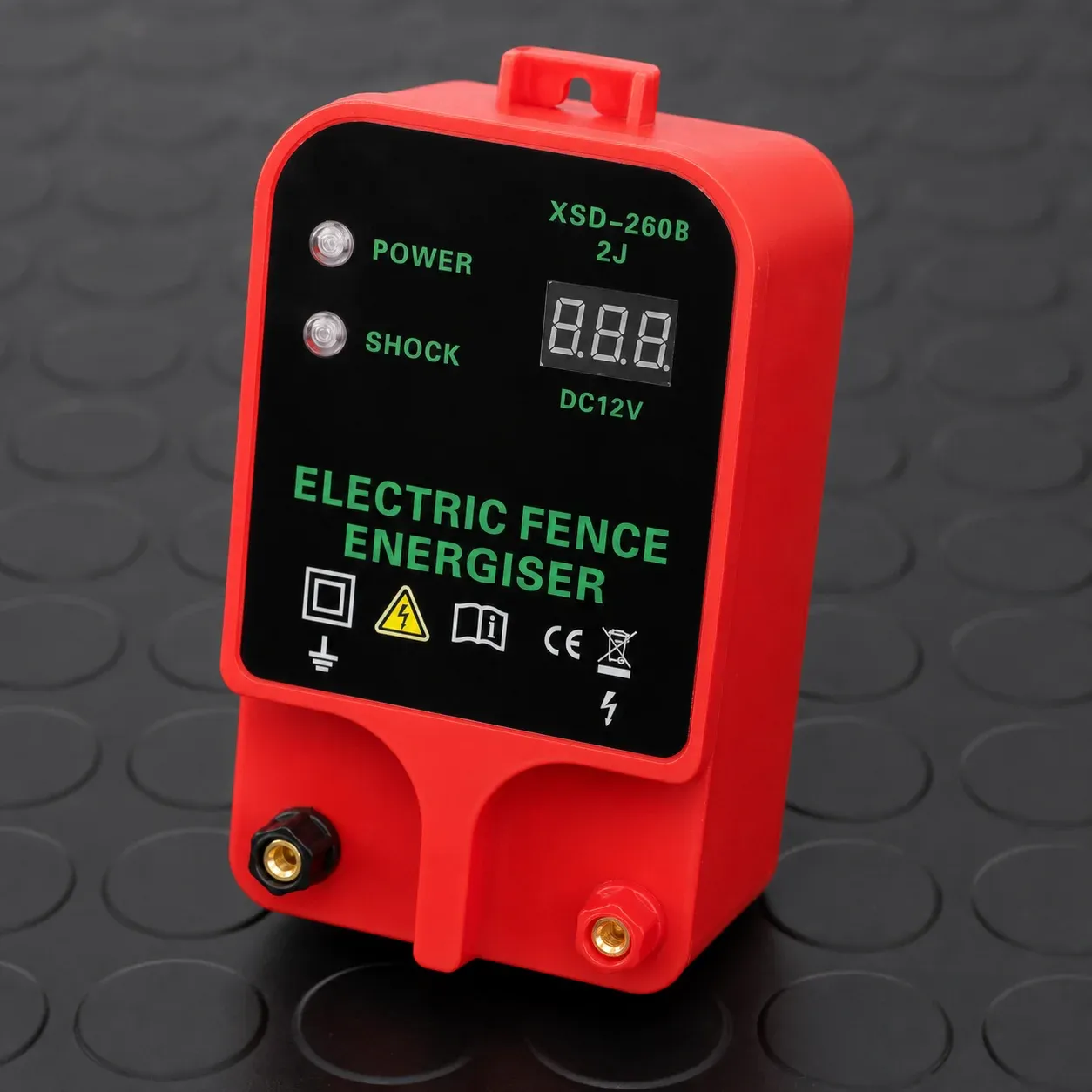

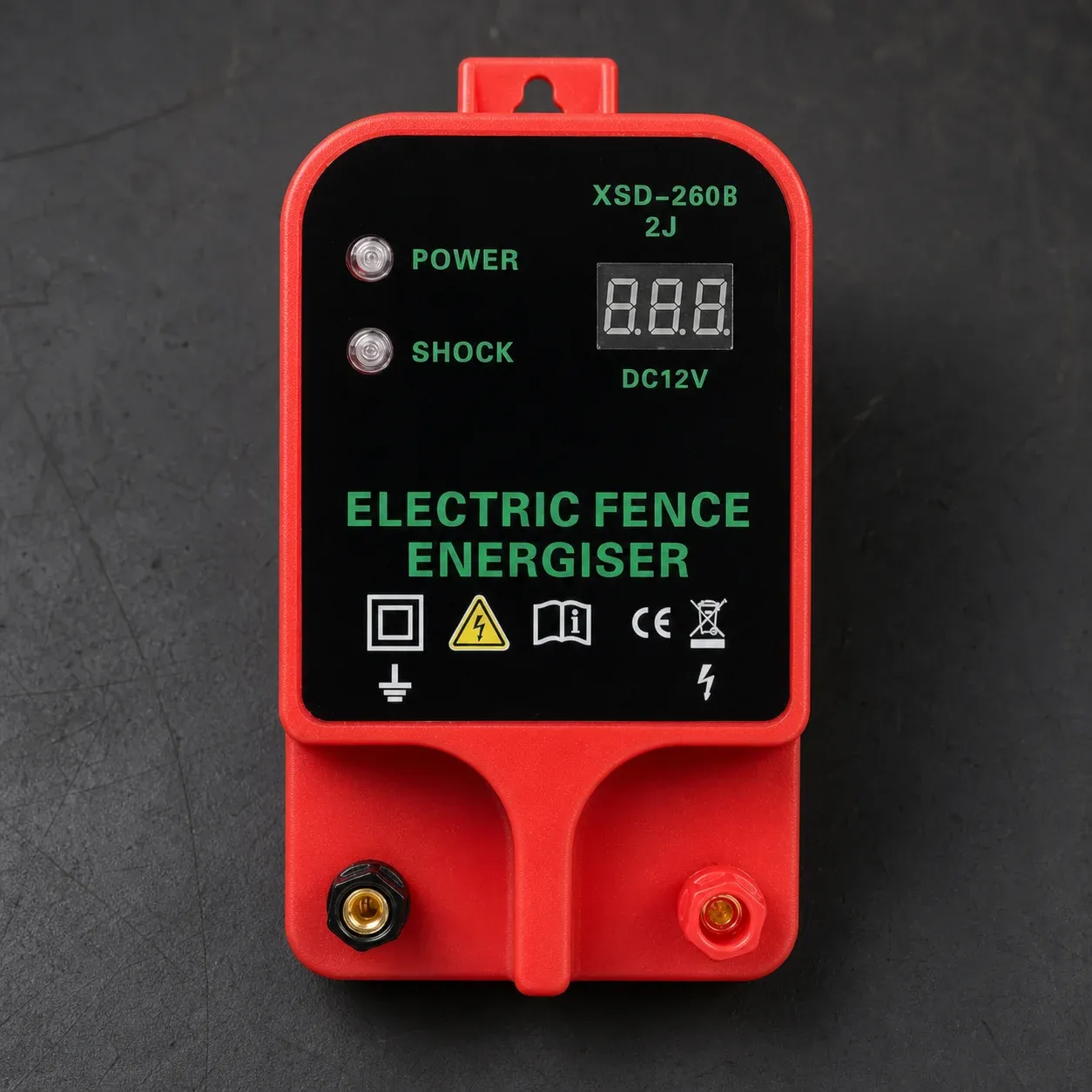

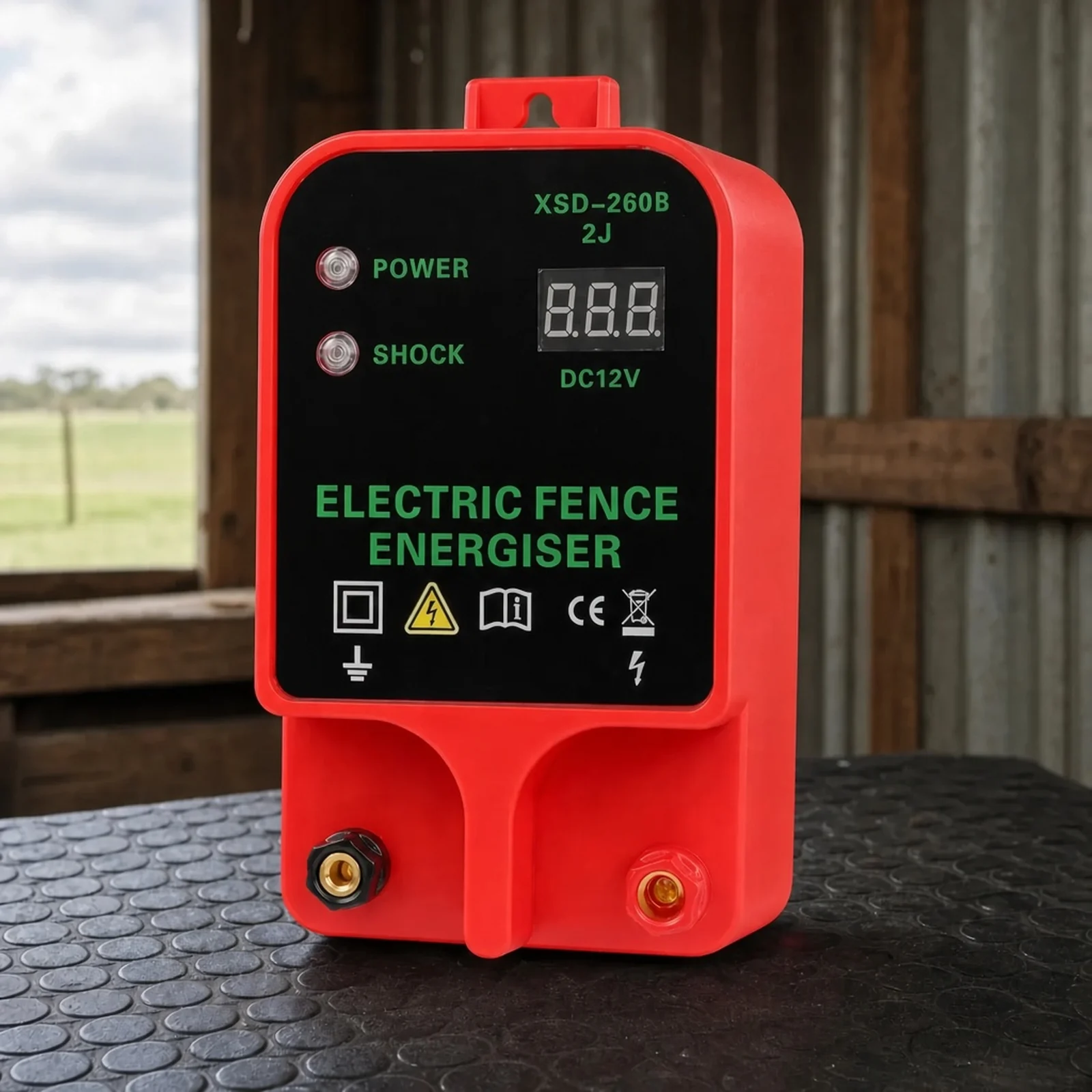

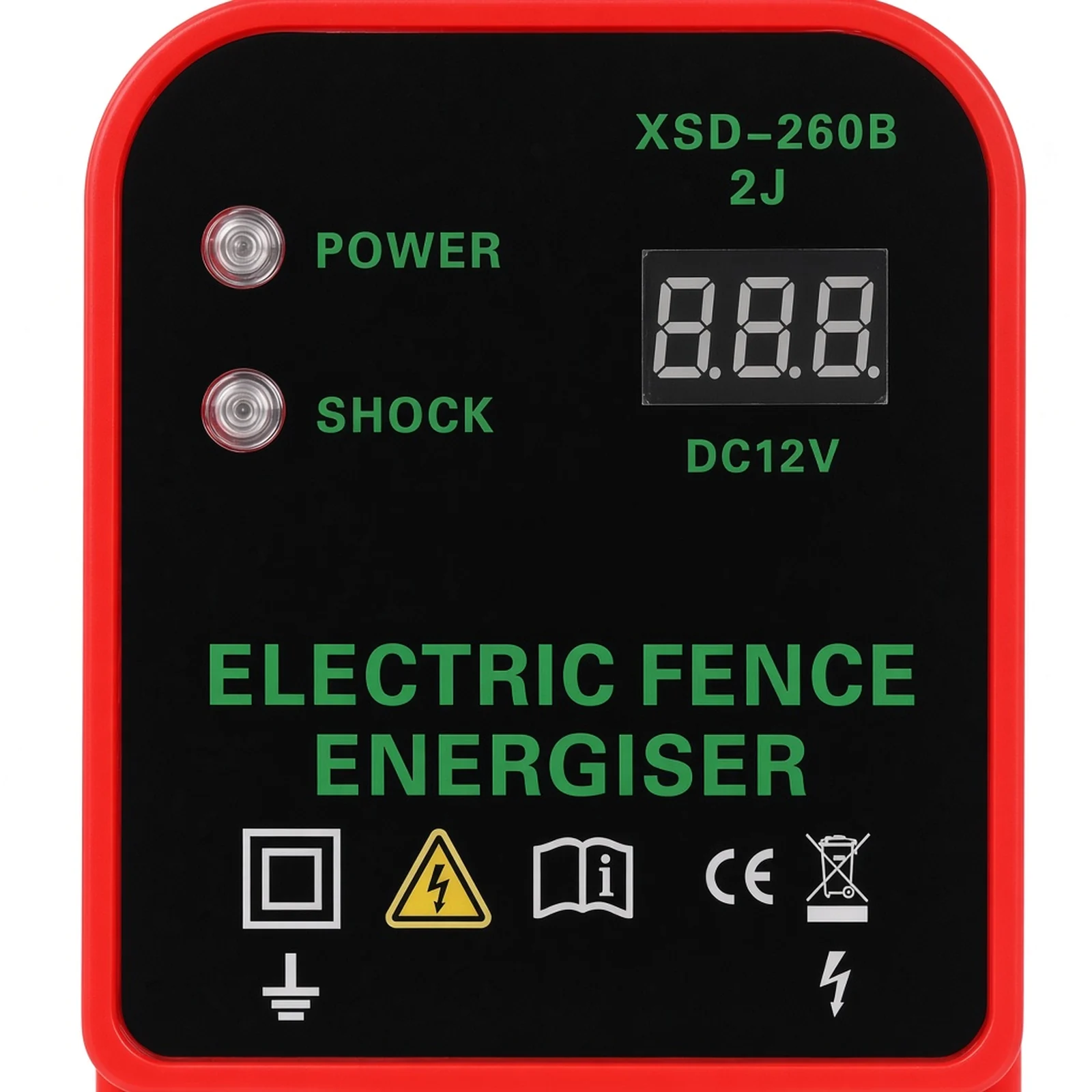

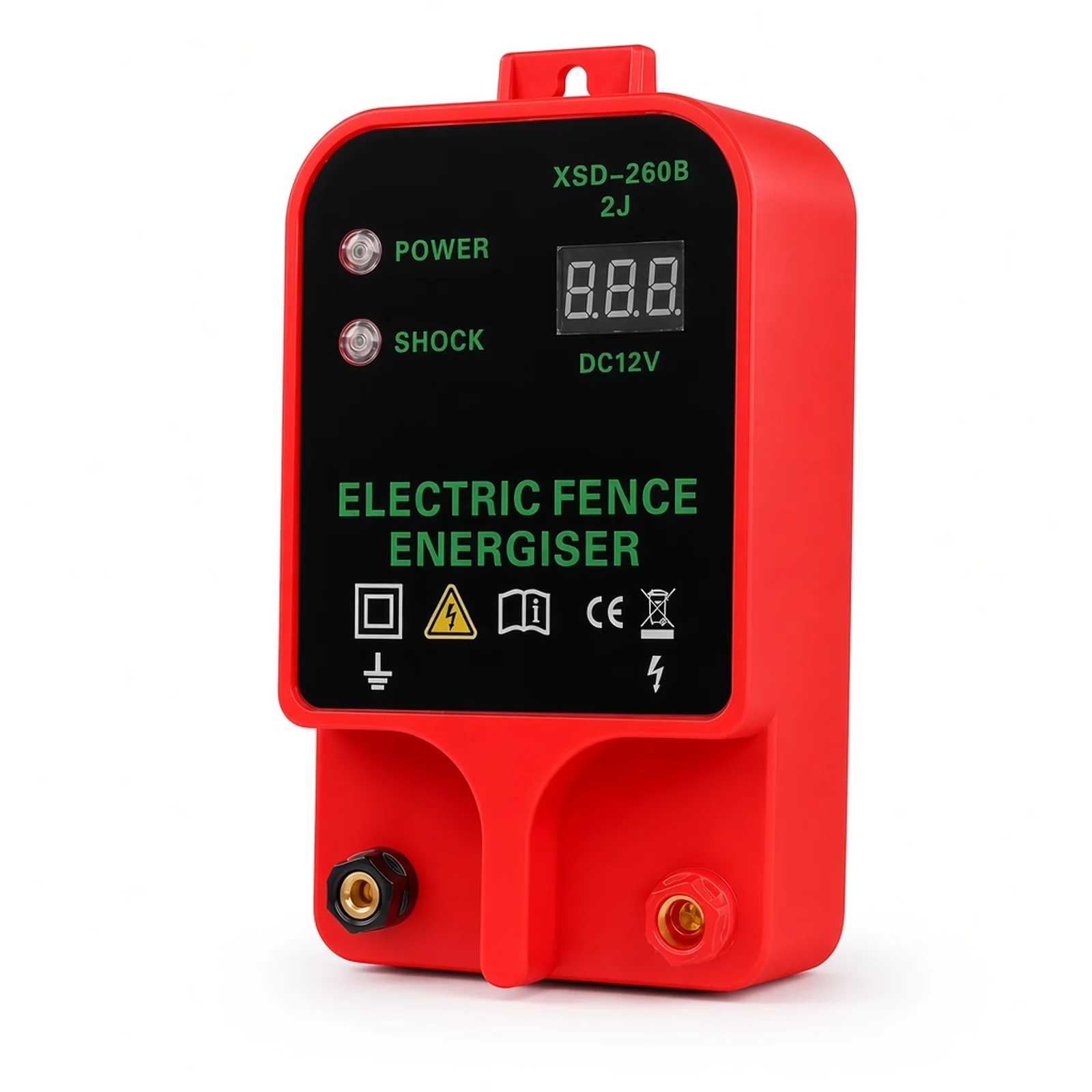

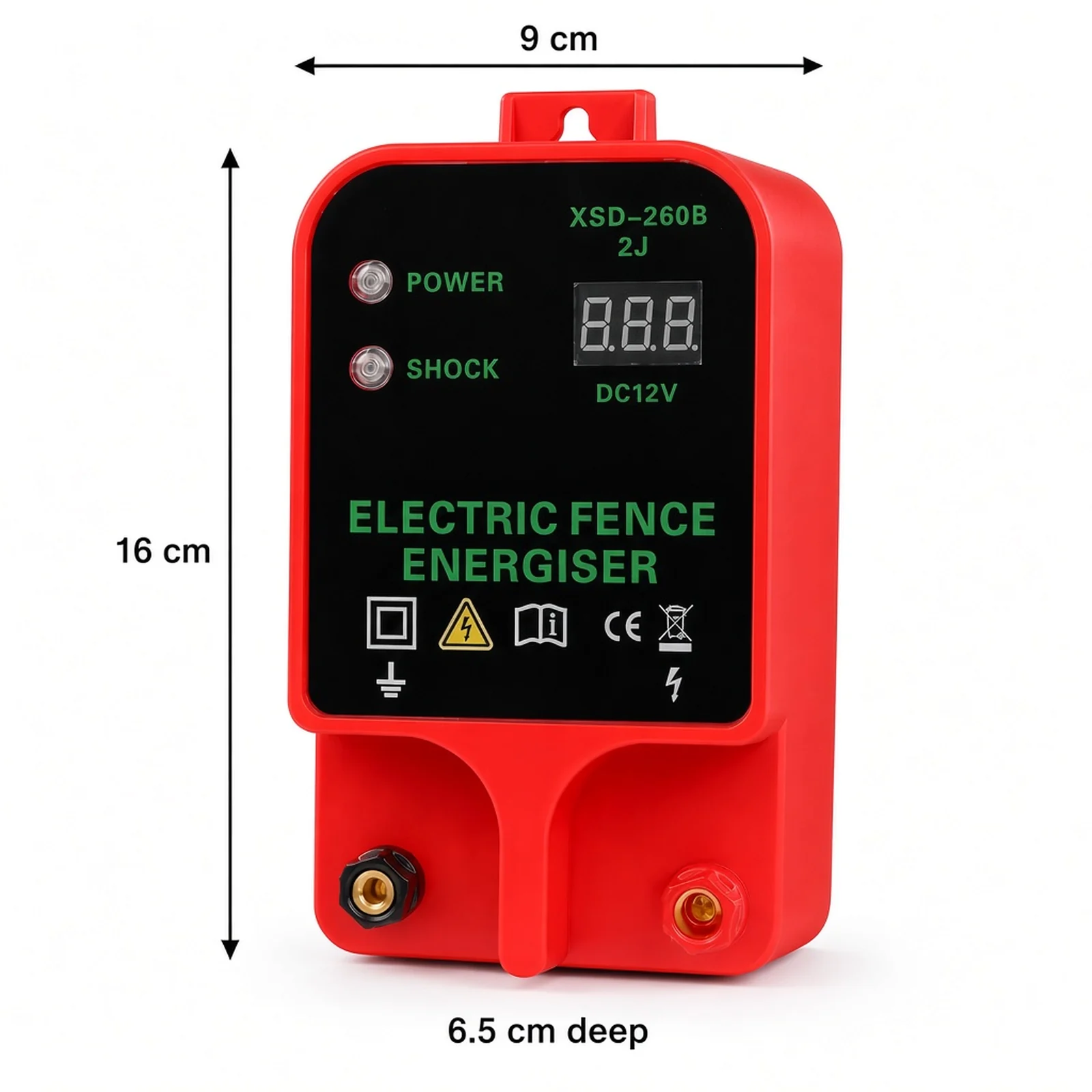

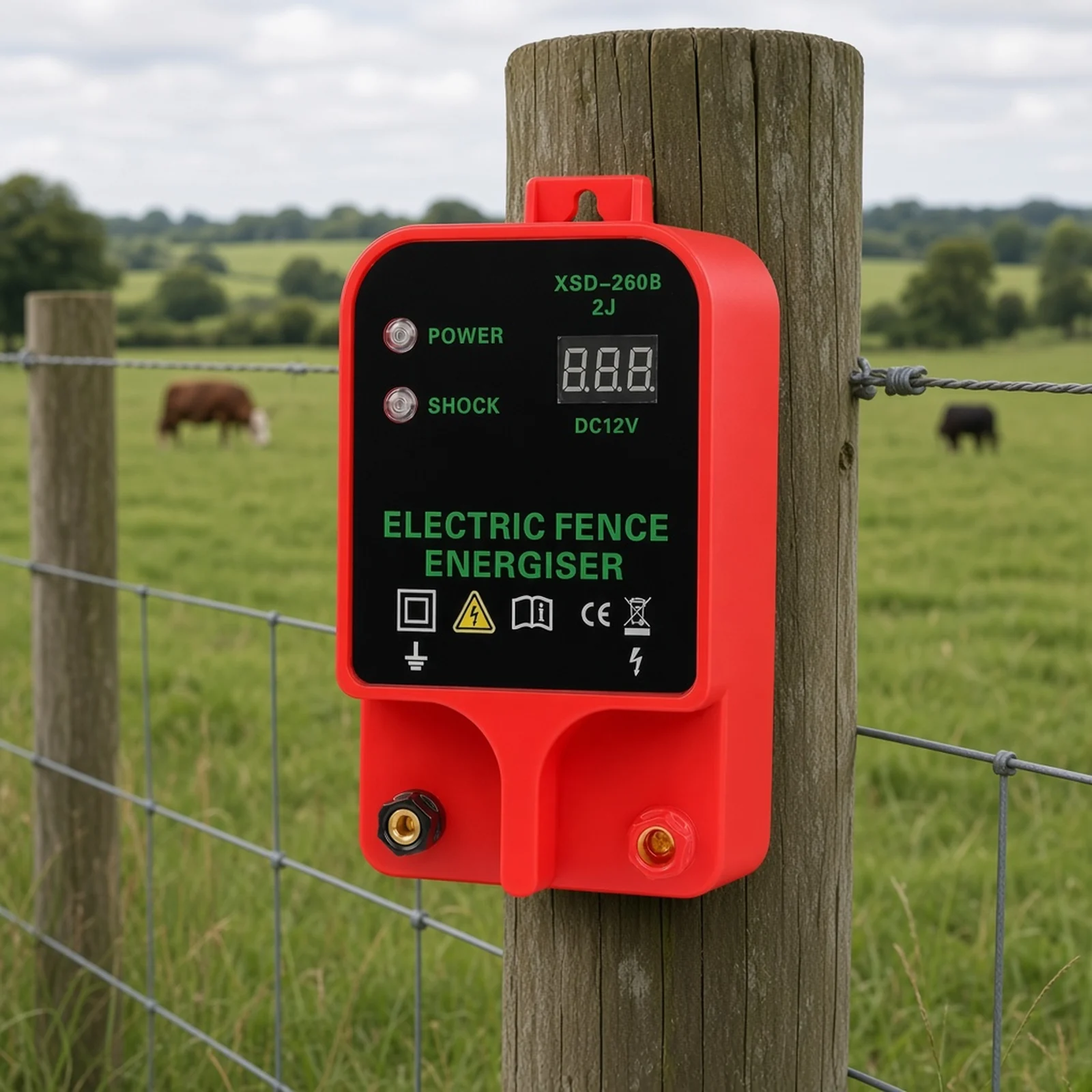

The housing is made for outdoor rain. Hang it from the top slot. The face has a power light, a shock light and a digital display. In the box: the energiser, a mains adapter, a 12 V lead with clips, and an instruction sheet. The body is 16 × 9 × 6.5 cm.
Technical Specifications
- Stored Energy
- 2 J
- Output Energy
- 1.5 J
- Max Output Voltage
- 10 kV peak
- Power Supply
- DC 12 V
- Max Fence Length
- Within 10 km
- Weather Resistance
- Waterproof housing
- Pulse interval
- About 1.3 seconds
- Dimensions
- 16 × 9 × 6.5 cm
Price Comparison
The price on this page is £95.43, with free UK delivery.
| Retailer | Price | Delivery | Warranty |
|---|---|---|---|
| ElectricFe UK (Specialist)BEST | £95.43 | FREE | 12 months + UK Support |
Cover on this page is 12 months + UK Support.
Customer Reviews
I was looking for an electric fence energiser for cattle field fencing and didn't want to pay Gallagher prices. The XSD-260B is on the cattle fence. The display and the shock light are easy to check from the gate.
The XSD-260B runs from a 12 V battery with the clip lead. The power light, the shock light and the display are easy to check from a distance.
Bought this XSD-260B after our old unit packed up. It arrived next day as promised. Very easy to mount in the barn and hook up to the main paddock. Highly recommended.
The XSD-260B is on the cattle fence. Use your own earth rod. One is not in the box.
Without a doubt the best electric fence energiser I've used for the price. We take it to the summer grazing and run it from a 12 V battery with the clip lead.
Solid, well-built electric fencing power unit. It's currently running about 6km of high tensile wire for our dairy herd and hasn't missed a beat. Good value for money.
The housing stayed sound through the heavy rain. The shock light is easy to see on the cattle fence.
